Features
-

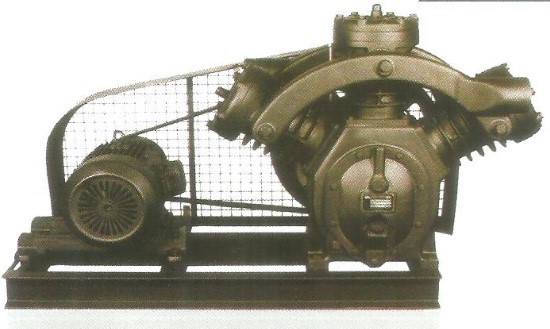

Dry Vacuum pumps are single acting, air cooled reciprocating units in single and two stage construction.
-
The piston type vacuum pumps achieve vacuum upto 29.0"Hg. (737 mm) for single stage and upto 29.6"Hg. (752 mm) for two stage configuration.
-
The dry type vacuum pumps are ideal for vacuum forming, paper handling, food processing, liquid transfer and several other such applications.
Technical Specification
Single & Two Stage Compressors
|
MODEL |
NO.OF CYLINDER |
PISTON DISPLACEMENT |
MAXIMUM PRESSURE |
MOTOR |
|
|
|
CFM |
M3/HR |
LPM |
PSIG |
KG/CM2 |
HP |
KW |
|
285V |
2 |
21.60 |
36.66 |
611 |
29.00 |
737 |
1.50 |
1.10 |
|
285VT |
2 |
10.80 |
18.33 |
306 |
29.60 |
752 |
4.50 |
1.10 |
|
294V |
2 |
34.60 |
58.72 |
979 |
29.00 |
737 |
2.00 |
1.50 |
|
294VT |
2 |
17.30 |
29.36 |
490 |
29.60 |
752 |
2.00 |
1.50 |
|
305V |
2 |
60.00 |
101.82 |
1698 |
29.00 |
737 |
5.00 |
3.70 |
|
305VT |
2 |
30.00 |
50.91 |
849 |
29.60 |
752 |
5.00 |
3.70 |
|
57V |
2 |
110.00 |
186.67 |
3113 |
29.00 |
737 |
7.50 |
5.50 |
|
57VT |
2 |
55.00 |
93.34 |
1556 |
29.60 |
752 |
7.50 |
5.50 |
|
65V |
3 |
148.50 |
252.00 |
4203 |
29.00 |
737 |
10.00 |
7.50 |
|
65VT |
3 |
99.00 |
168.00 |
2802 |
29.60 |
752 |
10.00 |
7.50 |
|
