Features
-

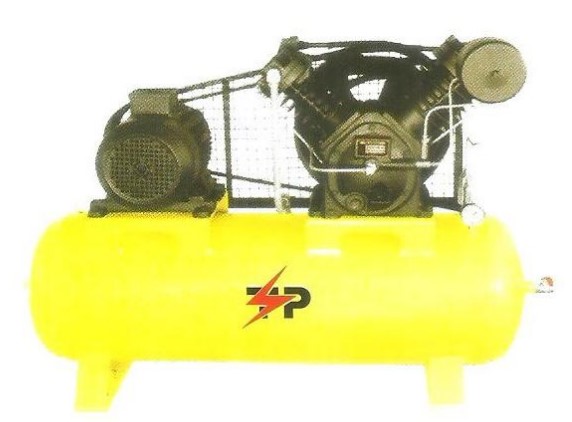

Two stage compressors are rugged packages for use either as a total air system for small industrial installations or a backup system in major installations.
-
These compressors are used where the pressure requirement is more then 7kg/cm2 & upto 14kg/cm2 maximum air pressure.
-
These compressore are ideal for textile industry, plastic industry, garages, petrol pumps, blowering, pnematic operations etc.
Technical Specification
Two Stage Compressors
|
MODEL |
NO.OF CYLINDER |
PISTON DISPLACEMENT |
MAXIMUM PRESSURE |
MOTOR |
|
|
|
CFM |
M3/HR |
LPM |
PSIG |
KG/CM2 |
HP |
KW |
|
284 |
2 |
7.46 |
12.66 |
211 |
200 |
14.06 |
2.00 |
1.50 |
|
284 |
2 |
9.79 |
16.61 |
277 |
200 |
14.06 |
3.00 |
2.25 |
|
2390 |
2 |
11.25 |
19.09 |
318 |
200 |
14.06 |
3.00 |
2.25 |
|
292 |
2 |
17.32 |
29.39 |
490 |
200 |
14.06 |
5.00 |
3.75 |
|
292 |
2 |
19.30 |
32.75 |
546 |
200 |
14.06 |
7.50 |
5.62 |
|
2525 |
2 |
22.00 |
37.33 |
623 |
200 |
14.06 |
7.50 |
5.62 |
|
303 |
2 |
26.40 |
44.80 |
747 |
200 |
14.06 |
7.50 |
5.62 |
|
2595 |
2 |
29.85 |
50.66 |
845 |
200 |
14.06 |
7.50 |
7.50 |
|
2595 |
2 |
37.82 |
64.18 |
1070 |
200 |
14.06 |
10.00 |
9.37 |
|
2595 |
2 |
41.75 |
70.85 |
1181 |
200 |
14.06 |
12.50 |
9.37 |
|
121T2 |
2 |
44.00 |
74.67 |
1245 |
200 |
14.06 |
12.50 |
11.25 |
|
121T2 |
2 |
55.00 |
93.34 |
1556 |
200 |
14.06 |
15.00 |
11.25 |
|
7150 |
2 |
55.00 |
93.34 |
1556 |
200 |
14.06 |
15.00 |
11.25 |
|
65T |
3 |
63.00 |
106.91 |
1783 |
200 |
14.06 |
15.00 |
11.25 |
|
65T |
3 |
81.00 |
138..81 |
2315 |
200 |
14.06 |
20.00 |
15.00 |
|
65T |
3 |
91.00 |
154.43 |
2575 |
200 |
14.06 |
25.00 |
18.75 |
|
75T2 |
3 |
99.00 |
168.00 |
2800 |
200 |
14.06 |
25.00 |
18.75 |
|
75T2 |
3 |
110.00 |
186.67 |
3113 |
200 |
14.06 |
30.00 |
22.50 |
|
3050 |
3 |
110.00 |
186.67 |
3113 |
200 |
14.06 |
30.00 |
22.50 |
|
3050 |
3 |
120.00 |
203.64 |
3396 |
200 |
14.06 |
40.00 |
30.00 |
|
