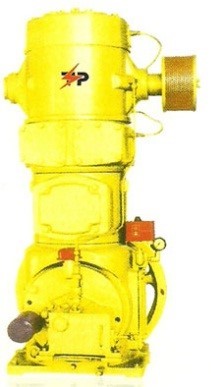

Vertical Type Water Cooled Lubricated and Non Lubricated Compressors
Home Products AIR COMPRESSORS Vertical Type Water Cooled Lubricated and Non Lubricated Compressors
Features
-
These Vertical packages are completely self-oriented compressed air plant engineered into an unusally compact unit that has every thing you need to generate low cost high volume air.
-
The lubrication is done by oil pump, which works as soon as the compressor starts & oil is used for frame lubrication only. A separate cylinder lubricator reservoir is provided on lubricated compressors. Non-lubricated oil free air compressors are supplied with teflon parts that require no oil.
-
These compressors are used in industries where high volume of air is required.
Technical Specification
Vertical Type Water Cooled Lubricated & Non Lubricated Compressors
|
Model |
NO. OF CYLINDER |
PISTON DISPLACEMENT |
MAXIMUM PRESSURE |
MOTOR |
|
|
|
CFM |
M3/HR |
LPM |
PSIG |
KG/CM2 |
HP |
KW |
|
H6X5LV |
1 |
120 |
204 |
3396 |
150 |
10.50 |
25 |
18.75 |
|
H6X5NLV |
1 |
120 |
204 |
3396 |
150 |
10.50 |
25 |
18.75 |
|
H7X5LV |
1 |
164 |
278 |
46441 |
125 |
8.80 |
30 |
23 |
|
H8X5LV |
1 |
164 |
278 |
4641 |
125 |
8.80 |
30 |
23 |
|
H8X5LV |
1 |
215 |
356 |
6084 |
100 |
7.00 |
40 |
30 |
|
H8X5NLV |
1 |
215 |
365 |
6084 |
100 |
7.00 |
40 |
30 |
|
H9.5X5LV |
1 |
274 |
465 |
7754 |
60 |
4.20 |
40 |
30 |
|
H9.5X5NLV |
1 |
274 |
465 |
7754 |
60 |
7.20 |
40 |
30 |
|
H8X7LV |
1 |
260 |
441 |
7358 |
135 |
9.50 |
50 |
38 |
|
H8X7NLV |
1 |
260 |
441 |
7358 |
135 |
9.50 |
50 |
38 |
|
H9X7LV |
1 |
330 |
560 |
9339 |
110 |
7.70 |
60 |
45 |
|
H9X7NLV |
1 |
330 |
560 |
9339 |
110 |
7.70 |
60 |
45 |
|
H9.5X7LV |
1 |
340 |
577 |
9622 |
100 |
7.00 |
60 |
45 |
|
H9.5X7NLV |
1 |
340 |
577 |
9622 |
100 |
7.00 |
60 |
45 |
|
